PCAL and LCAL: PostScript Calendar Programs

Pcal is usually used to generate monthly-format (one month per page) calendars with optional embedded text and images to mark special events (e.g. holidays, birthdays, etc). It can also generate yearly-format (one year per page) calendars.

Lcal generates a graphical ''lunar phase'' calendar for an entire year (see below).

Both programs were previously released by Andrew W. Rogers, whose web page has disappeared.

New, improved versions of pcal and lcal are available here:

pcal & lcal SourceForge project website

Download

If you're running in a DOS (or Windows) environment and you want to avoid compiling (or just cannot compile) the source code, pre-built executable files ('pcal-4.11.0.exe' and 'lcal-2.1.0.exe') for those environments are also available at the same website.

Mailing List / Contact

There is a mailing list for pcal and lcal. Questions and topics about how to use the programs and about their further development can be raised there.

As of January 2007, to combat the mailing list spammers, you must be subscribed to the list in order to post messages there.

The current maintainer (since Nov 2004) is Bill Marr. Although the mailing list is the preferred method of communication, Bill can be reached here:

3rd-Party Scripts, Utilities, and Enhancements For PCAL

• email-reminder and group-calendaring Unix shell scripts -- these useful Unix shell scripts, written and generously provided by Kristofer Bergstrom, help automate his usage of pcal

• 'ical2pcal' -- a Unix shell script by Francisco José Marín Pérez which converts iCalendar ('.ics') data files to a format suitable for use in your pcal configuration file(s)

• 'makediary' -- a PostScript calendar program by Russell Steicke that uses pcal's date file format

• source of 'pcalyacc' utility -- a small lex-YACC preprocessor tool by Richard J. Mathar to convert certain date ranges in a pcal calendar file into lists of single day specifications recognized by pcal

• Thomas Zastrow's page (mostly in German) about 'pcal' which includes an example (with the help of Scribus) of a monthly calendar with a full-page background image

• Iain Mac Donald's tutorial, which includes screenshots, describes the creation of a yearly calendar superimposed over a full-page background image (with the help of the pstoedit conversion utility and either the Skencil or Inkscape vector graphics editor)

PCAL Reviews and Other Coverage

• 'PCAL gets dates down on paper' -- a Jul 2007 Linux.com review by James John Eaton

  This review includes some good examples of various event specifications for use in your configuration file(s).

• 'Kurztipp: Kalender an der Kommandozeile erstellen' -- Thomas Zastrow's Aug 2006 short article (in German) on German website 'Pro-Linux'

• Freshmeat entry for pcal and lcal

• section about pcal (chapter 48, section 9) in the 1997 O'Reilly book "Unix Power Tools"

Other Links

• NEW! (as of 27 May 2009): 'pcal' and 'lcal' on Mac OS X, using Fink -- generously provided by someone going by the handle "Monic Polynomial"

• 'pscal' -- a Bourne shell script by Mark B. Hanson "that produces simple, nice-looking PostScript calendars"

• Calendar on a regular/rhombic dodecahedron -- an excellent site (including photos of the finished product) by Ole Arntzen on how to download and make a nifty, 3D calendar on a dodecahedron (1 month on each of 12 faces)

  Of the 3 variants of the 'dodecahedron' calendars mentioned in this section, I (Bill Marr) have found Ole's version to be the best overall version, for the following reasons:

  1. It maximizes the use of the available space, making the calendar faces as large as possible, resulting in a nice, large dodecahedron, with larger text.

  2. It prints the calendars in what I consider to be the "proper side up" orientation, for a dodecahedron sitting on your desk.

  3. The glue-able tabs are designed in a way that makes them easier to cut out (i.e. with scissors), using fewer cuts and angles.

  4. By tweaking the '/weeknumbers' setting in the PostScript source code, you can enable little brownish-colored 'week numbers' (1-53 for 2008) in front of each week row.

  5. It prints Sundays (or whatever is defined as 'holyday' in the PostScript source code) in red, which is a nice, colorful touch. (Some other calendars show all days in black.)

  6. By tweaking the '/holidays', '/bdays', '/rdays' and '/bluerange' arrays in the PostScript source code, you can define which days get colored red, which days get a blue box, which days get a red box, and which _range_ of days get colored blue.

  If you make one of these dodecahedron calendars, I would recommend 2 things:

  • It helps immensely to (carefully!) score all of the 'fold' lines with an Exacto knife (very lightly all the way across or slightly harder, in several short segments) before assembling and gluing the final product.

  • I recommend throwing a few marbles, a bunch of unpopped popcorn kernels, or (in a pinch) a few coins inside, just before gluing the last face down. This adds some much-needed weight to it, so that it won't blow away so easily!

• The Chinese Zodiac spiral (by way of PostScript) -- a neat PostScript-generated spiral, by Robert Simms, showing the (12-animal) Chinese zodiac around the edge, with all the years shown, starting from 2008 and going backwards as the spiral tightens

  Robert also has a version of the 'dodecahedron' calendar, but it's missing certain features that are provided in Ole Arntzen's version, above.

• source of 'deskcal2' by Richard J. Mathar -- an alternate version of the 'dodecahedron' calendar mentioned above. Per the website: this is "a C-shell script to create a PostScript file of an unfolded Dodecahedron with a calendar of 12 months covering the 12 faces. The original by A Rogers has been enhanced by a scaling option, a colorizing option and a German/French/Spanish/Italian output option." This 'deskcal2' version does not have as many features as Ole Arntzen's version (described above), however.

• PostScript Language Reference Manual -- the free, online Adobe book (as of May 2009; location changes occasionally)

• BSD Main Utilities ('bsdmainutils') package -- this is the source of the old, simple Unix/BSD 'calendar' program, which can be used with pcal and the '-c' option. This old program does not seem to be included with most GNU/Linux distributions these days.

PCAL: The PostScript (and HTML) Calendar Program

It is usually run from the command line but there is an HTML/CGI capability as well, to generate calendars (in either PostScript or HTML format) from a web-browser interface.

Various events can be defined in an external text file to control the appearance of the calendars generated by pcal. On monthly PostScript calendars, EPS (Encapsulated PostScript) images (photos, icons, etc) can be added to any given day of the month.

Pcal is distributed with several sample configuration files which define various events (holidays, etc). There are samples for several countries. If you have prepared pcal configuration files that you think are worth sharing, send them to the email address shown at the bottom of this page and we'll be happy to include them in the next release of pcal.

For much more detail on the available options and use of pcal, use any of the following sources (which represent the same content as the pcal 'man' page, but in alternate formats):

• manual pages in PostScript format
• manual pages in HTML format
• manual pages in ASCII text format

Pcal supports the following languages:

Pcal 4.11.0 Release Now Available! (18 Dec 2007):

Changes that are available in the 4.11.0 release:

• Fixed all the bugs described in the 'Bugs/Problems in (now-obsolete) Pcal 4.10.0' section (see the link in the 'Notes On Obsolete Releases of Pcal' section, below).

• Added Hawaiian language support.

  (Thanks to Eric Nichols for his patch.)

• Added Slovak language support, with sample Slovak calendar configuration file ('examples/calendar_sk.txt').

  (Thanks to Zdenko Podobny for his patch and configuration file.)

• Added the sample Polish calendar configuration file ('examples/calendar_pl.txt'), to the release package. It had been inadvertently omitted from the 4.10.0 release.

  (Thanks to Dominik 'Chiron' Derlatka for this file.)

• Added a sample Spanish calendar configuration file ('examples/calendar_es.txt').

  (Thanks to Francisco José Marín Pérez for this configuration file.)

• In the USA calendar example file ('examples/calendar_us.txt') and the generic 'pcal-cfg.txt' example file, commented out the pre-2007 rules for Daylight Saving Time (DST) and added new rules for 2007 and beyond.

• Made some tweaks to the 'examples/pcal-cfg.txt' sample configuration file, in some cases to demonstrate more 'pcal' functionality.

• Allow the drawing of moon phase icons ('-m' or '-M') and Julian dates ('-j' or '-J') on yearly-format calendars.

  Previously, these features were only allowed on monthly-format calendars.

• Added a new preposition -- 'on'.

  The use of this preposition is similar to the existing prepositions like 'on_or_before' and 'on_or_after', but it requires that the event occur exactly on the specified day.

  See the 'ReadMe.txt' file for details on how to use this feature.

  (This new feature was added based on a request from [and partially based on a patch from] Erkki Petsalo.)

• The 'F13' pre-defined event has been removed. It is unnecessary now that 'pcal' has support for the new 'on' preposition (described above).

  Replace any occurrence of 'F13' in your configuration file(s) with this:

  Fri on all 13

• Added a new option -- '-W [ left | center | right ]' -- to specify the horizontal alignment of the month/year title displayed at the top of monthly-format calendars.

  See the 'ReadMe.txt' file for more details.

  (This new feature was added based on a request and a very thorough patch from Todd Foster.)

• Modified the Unix makefile to allow use of a user-specified destination directory ('$DESTDIR') on the installation step.

  See the 'ReadMe.txt' file for more details and an example of its usage.

• Added 2 Unix shell scripts (and a 'readme.txt' file) to a new 'scripts' directory in the 'pcal' distribution.

  See the author's detailed explanation of the usage of these scripts.

  (Thanks to Kristofer Bergstrom for these useful script files.)

• Re-added support for the Amiga platform, which had been removed in the last release.

  (Thanks to Stefan Haubenthal for the Amiga patch and appropriate 'makefile'.)

• Removed the long-obsolete external 'moon file' concept. Now, we depend solely on the algorithmic determination of moon phases, which has been in place for many years and seems to be plenty accurate.

  The 'moon98' file (with manual entries of the dates and times of the 4 primary moon phases for all of 1998) was also removed from the 'examples' subdirectory, since it no longer serves any purpose.

Bugs/Problems in Pcal 4.11.0 (as of 27 May 2009):

• none currently

Notes On Obsolete Releases of Pcal:

Pcal PostScript Calendar Examples

Figure 1 -- Example of a monthly PostScript calendar (with daily moon phases enabled)


Figure 2 -- Example of a yearly PostScript calendar (American holidays and with major moon phases enabled)

Note that both of these calendars were created using some of the options found in the sample 'pcal-cfg.txt' configuration file, which comes with every pcal distribution and is also available directly by browsing the CVS repository.

Pre-Generated Pcal PostScript Monthly/Yearly Calendars

• 2008 monthly-format (18KB)
• 2009 monthly-format (18KB)
• 2010 monthly-format (18KB)
• 2011 monthly-format (18KB)
• 2012 monthly-format (18KB)

• 2008 yearly-format (13KB)
• 2009 yearly-format (13KB)
• 2010 yearly-format (13KB)
• 2011 yearly-format (13KB)
• 2012 yearly-format (13KB)

Adding Graphical Images (Logos, Icons, Photos, etc)

The image file must be in the Embedded PostScript (EPS) format.

The pcal releases come with a single EPS sample file ('eps/recycle.eps') of the ubiquitous 'recycle' icon (3 green arrows in a triangular shape):

Such an image might be used with configuration file settings like this:

second Sat in all RECYCLE!
second Sat in all image:/path-to-eps/recycle.eps 0.039 0.039 34 -9

Much more detail about adding images to your monthly-format PostScript calendars are provided in the 'man pcal' page, available once pcal has been installed on your system. The content of the 'man' page is also available in the equivalent HTML, PostScript, and text versions, both via this website (see the links above) and included with the pcal source code releases as 'doc/pcal-help.{html,ps,txt}'.

Some useful links related to the EPS image capability in pcal:

• Open Clip Art Library

  The 'Open Clip Art Library' is a good source of freely-usable images for decorating your calendar events.

• `libwmf' / `wmf2eps' library/utility

  This library and utility are useful for generating pcal-capable EPS icons from existing icons in the '.WMF' (Windows MetaFile) format. These icons are often distributed with commercial calendar-creation programs for Windows.

• GIMP (GNU Image Manipulation Program)

  This application is useful for converting non-EPS images (e.g. photos) to EPS format.

• ImageMagick utilities

  This suite of graphical utilities is useful for converting non-EPS images (including SVG-format images) to EPS format, using the 'convert' utility.

  This suite includes other useful ImageMagick utilities like 'display' and 'identify'.

• `librsvg' / `rsvg' SVG Rendering library/utility

  This library and utility are useful for converting SVG-format images into an intermediate format (including PNG and JPEG), to then be converted to EPS format using ImageMagick's 'convert' utility mentioned above.

  This method is sometimes useful for certain SVG images which don't convert correctly using the single step from SVG to EPS using the 'convert' utility.

Pcal HTML Calendars

Normally, a monthly format is produced, with event text (but no images) embedded in each day for which an event has been defined.

Adding the '-q' flag changes the format to print out as one column per month resulting in table that gives a quicker overview of several months and which can be used as a year-planner. As a year-planner obviously has less space for text, only the first character of the weekday and the first 5 characters of each calendar entry are printed. Holidays are marked red but the text associated with that holiday event is not printed. The year-planner gives output only in HTML and therefore has effect only when used with the '-H' flag.

Here are a couple of examples of HTML calendars produced by pcal:

• Monthly format (3 months in this example): 'pcal -H 10 2007 3'
• Yearly-planner format (12 months in this example): 'pcal -H -q 1 2008 12'

Pcal Shortcomings

Pcal has several shortcomings, some of which may be overcome in future releases:

• Pcal does not support the entry of a range of dates in the configuration file. Several people have requested fixes for or otherwise commented on this shortcoming.

  A work-around for some involves use of the 'pcalyacc' utility mentioned in the '3rd-Party Scripts, Utilities, and Enhancements For PCAL' section, above.

• Pcal does not support UTF-8 / Unicode. This limits its ability to support certain languages (like Japanese, Chinese, Korean) with character sets which aren't supported by the ISO 8859-* (Latin-1, Latin-2, etc) character encodings.

• Pcal always uses 6 rows on a monthly-format (1 month per page) calendar. On most months, this results in a "wasted" row, but it's required to support certain months (like December 2007 and March 2008) which actually need all 6 rows.

  The 'pscal' calendar-generating script, mentioned in the 'Other Links' section, above, does not have this shortcoming. It uses 5 rows all the time and handles months like December 2007 by putting 2 days into one box. It even handles quite well the positioning of event text, moon icons, and Julian dates in the cases where 2 days share the same box. Pcal, on the other hand, doesn't currently attempt this because it complicates things like positioning of the EPS images and the issue of yearly-format (1 year per page) calendars (features not supported by 'pscal').

  Eventually, it is envisioned that 'pcal' would allow the user to specify '5-row' or '6-row' (and maybe even 'best-fit') as an option for monthly-format calendars and somehow deal with the issues that raises.

• Although 'pcal' supports the display of EPS images in the "day-boxes" of monthly-format calendars, it does not currently support the display of a large background image shown "underneath" the calendar.

  A couple of people have used various "work-around" ways to get a large background image displayed on 'pcal' calendars. Someday, 'pcal' might support this natively.

• The positioning of EPS images in the "day box" is rather unsophisticated. (Basically, it involves the specification of a simple X-offset and Y-offset from the default position.) It would be nice to allow some more-sophisticated options (e.g. relative positioning from the "day box" edges) and/or more automation (based on paper size, number of events, etc) in the positioning of EPS images.

• Pcal does not allow font or color specification at the "event level". Currently, the font specified for one event applies to all events. It would be nice to optionally allow the control of fonts and colors at a finer-grained level, for events and other printed text.

  Similarly, 'pcal' does not allow font (or color) specification of the 'title' text based on the month. Such a feature might be nice to allow use of a font like "SnowtopCaps" in winter months. (Of course, you can achieve that effect by creating individual monthly calendars [1 or more months at a time], using the '-t' option to specify the title font.)

LCAL: The Moon Phase Calendar Program

It is run from the command line.

For much more detail on the available options and use of lcal, use any of the following sources (which represent the same content as the lcal 'man' page, but in alternate formats):

• 'lcal' manual pages in PostScript format
• 'lcal' manual pages in HTML format
• 'lcal' manual pages in ASCII text format

Lcal 2.1.0 Release Now Available! (07 Oct 2007):

Changes that are available in the 2.1.0 release:

• Enhanced the colorization options that are available with the '-s' (shading) command-line option. See Figures 3b and 3c, below, for an example of the possibilities.


  Removed the now-unneeded '-i' ('invert colors') option.

Bugs/Problems in Lcal 2.1.0 (as of 27 May 2009):

• none currently

Notes On Obsolete Releases of Lcal:

Lcal PostScript Calendar Examples

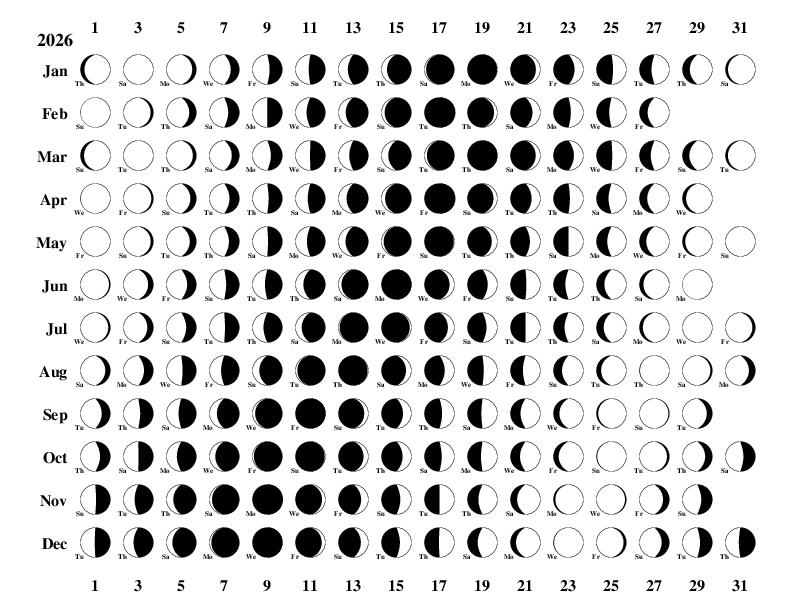

Figure 3a (new in version 2.0.0) — Example of a black-and-white, 1-page, ''odd-days-only'' PostScript lunar calendar

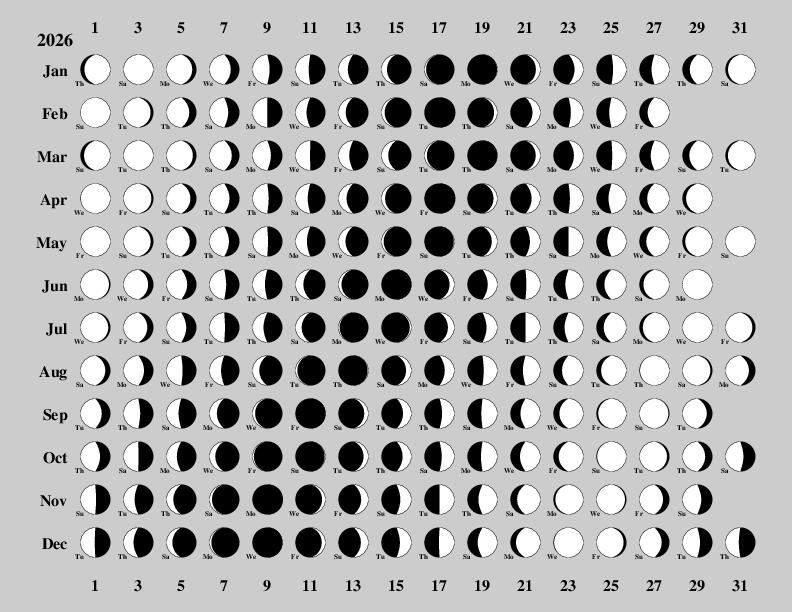

Figure 3b (new in version 2.1.0) — Example of a grey-scale, 1-page, ''odd-days-only'' PostScript lunar calendar

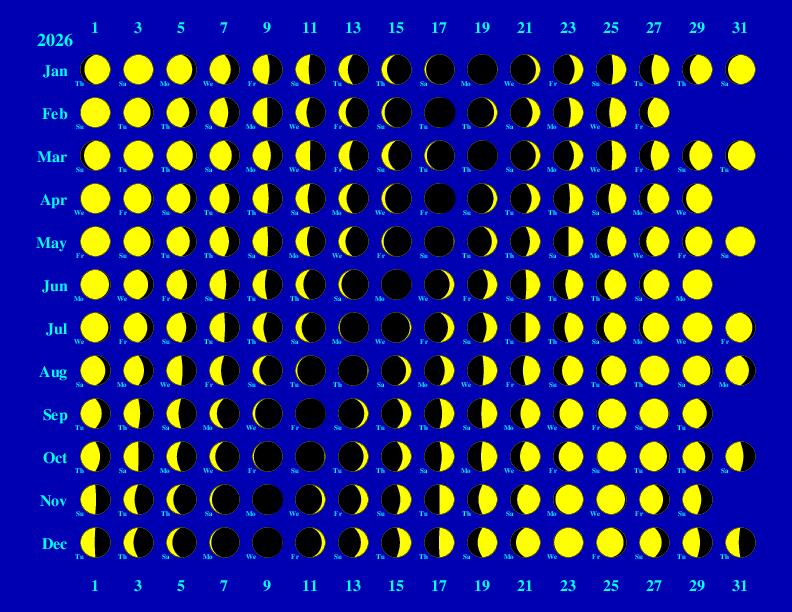

Figure 3c (new in version 2.1.0) — Example of a color, 1-page, ''odd-days-only'' PostScript lunar calendar

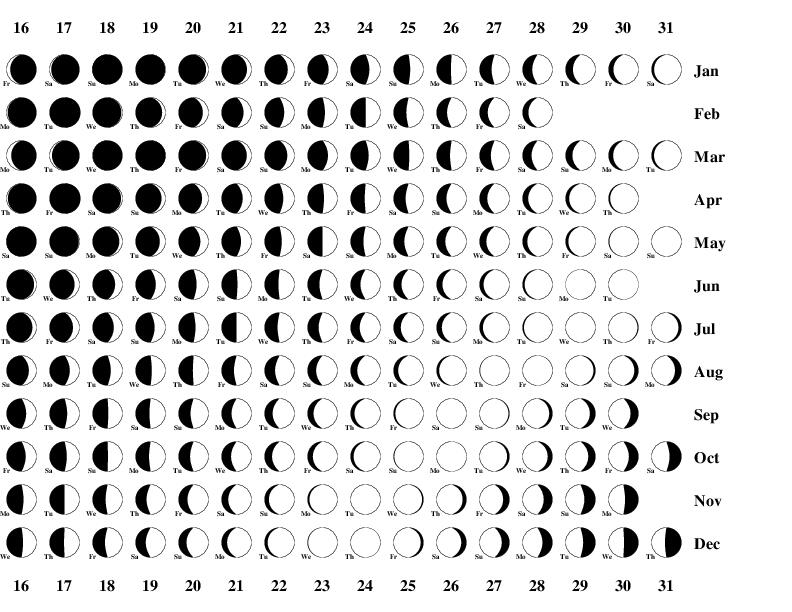

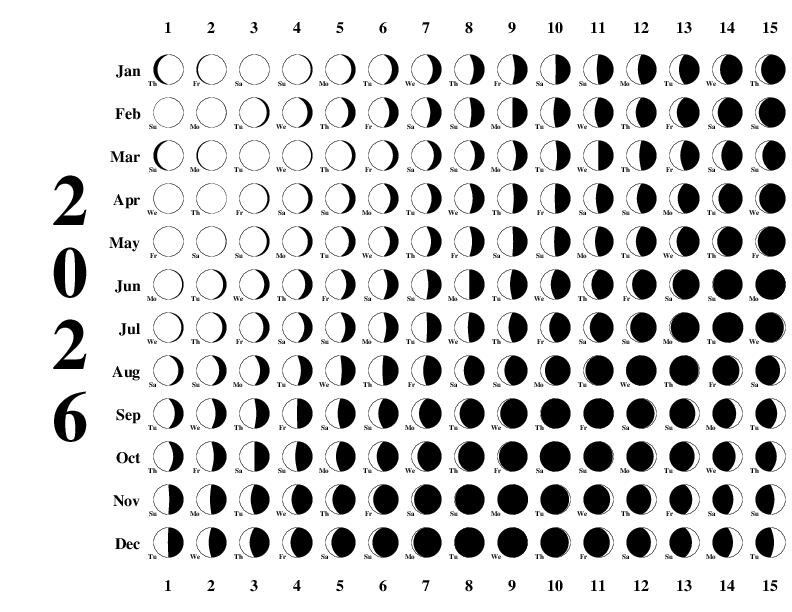

Figures 5 & 6 — Example of a 2-page PostScript lunar calendar

Note that portrait page orientation is also supported for each of the examples shown above, despite the fact that no examples are actually shown here.

Pre-Generated Lcal PostScript Lunar Calendars

• 2008 (1-page, odd-days-only, color, 9.1 KB)
• 2008 (1-page, odd-days-only, grey, 9.0 KB)
• 2008 (1-page, odd-days-only, B/W, 9.0 KB)
• 2008 (1-page, compressed, B/W, 9.2 KB)
• 2008 (2-page, B/W, 9.4 KB)

• 2009 (1-page, odd-days-only, color, 9.1 KB)
• 2009 (1-page, odd-days-only, grey, 9.0 KB)
• 2009 (1-page, odd-days-only, B/W, 9.0 KB)
• 2009 (1-page, compressed, B/W, 9.2 KB)
• 2009 (2-page, B/W, 9.4 KB)

• 2010 (1-page, odd-days-only, color, 9.1 KB)
• 2010 (1-page, odd-days-only, grey, 9.0 KB)
• 2010 (1-page, odd-days-only, B/W, 9.0 KB)
• 2010 (1-page, compressed, B/W, 9.2 KB)
• 2010 (2-page, B/W, 9.4 KB)

• 2011 (1-page, odd-days-only, color, 9.1 KB)
• 2011 (1-page, odd-days-only, grey, 9.0 KB)
• 2011 (1-page, odd-days-only, B/W, 9.0 KB)
• 2011 (1-page, compressed, B/W, 9.2 KB)
• 2011 (2-page, B/W, 9.4 KB)

• 2012 (1-page, odd-days-only, color, 9.1 KB)
• 2012 (1-page, odd-days-only, grey, 9.0 KB)
• 2012 (1-page, odd-days-only, B/W, 9.0 KB)
• 2012 (1-page, compressed, B/W, 9.2 KB)
• 2012 (2-page, B/W, 9.4 KB)
